This is the selling point of the product
Compact size and structure

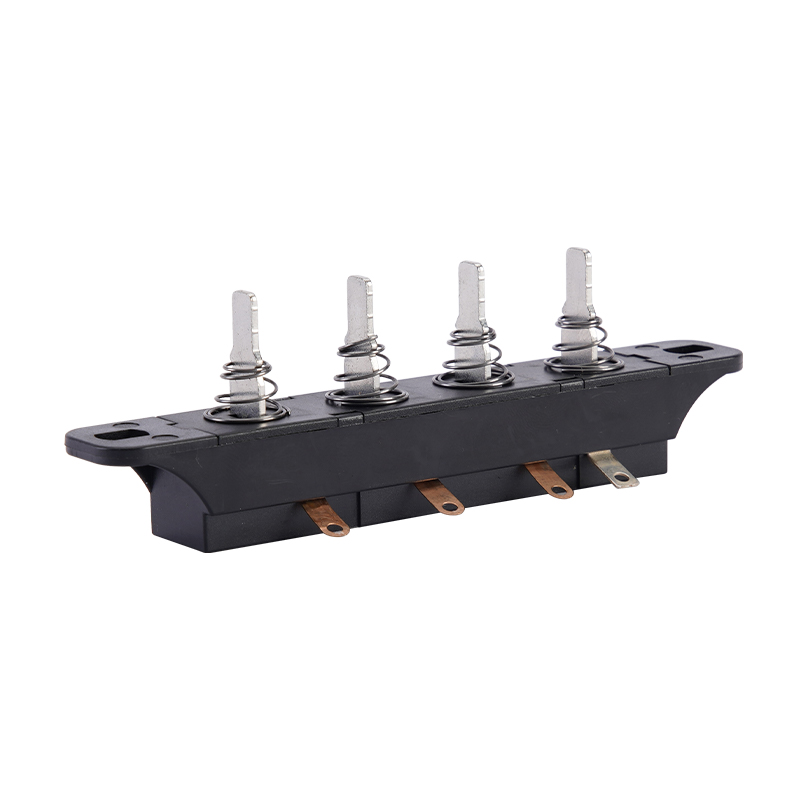

706H-002 Key switches
Details
characteristic
parameter
Place of Origin | Dongguan, Guangdong, China |
Brand name | BAOKEZHEN |
Electrical parameters | 1A 125VAC/250VAC 1(1)A 250VAC T85/55 1E4 |
Electrical life | 1E4 |
Mechanical life | 2E4 |
contact resistance | <100mΩ |
Insulation impedance | >100MΩ |
Withstand voltage | 1500VAC |
Leakage tracking index | PTI 175 |
Safety sign | |
This switch is applicable to Class II appliances |
Degree of protection | IP20 | |
Ambient air temperature | 0℃~+85℃ | |
Fire rating | UL94V-0 | |
Glowing wire temperature | 850℃ | |
Base and button materials | PC | |
Contact material | Silver or silver tin oxide | |
Terminal material | copper alloy | |
Terminal temperature rise | Max.30K(UL1054) Max.55K(EN61058-1、GB/T 15092.1) |
